What are the standards for building an interior staircase?

Last modified: 2021-01-26 | Approximate reading time 4 mins

Amanda Harvey

Thinking of building an interior staircase to replace the one you currently have? If this is the case, it’s imperative that you know which standards to observe to respect building codes, especially those put in place for the sake of safety and comfort. But what exactly are they?

The construction of an internal staircase: the standards to follow

The different parts of a staircase

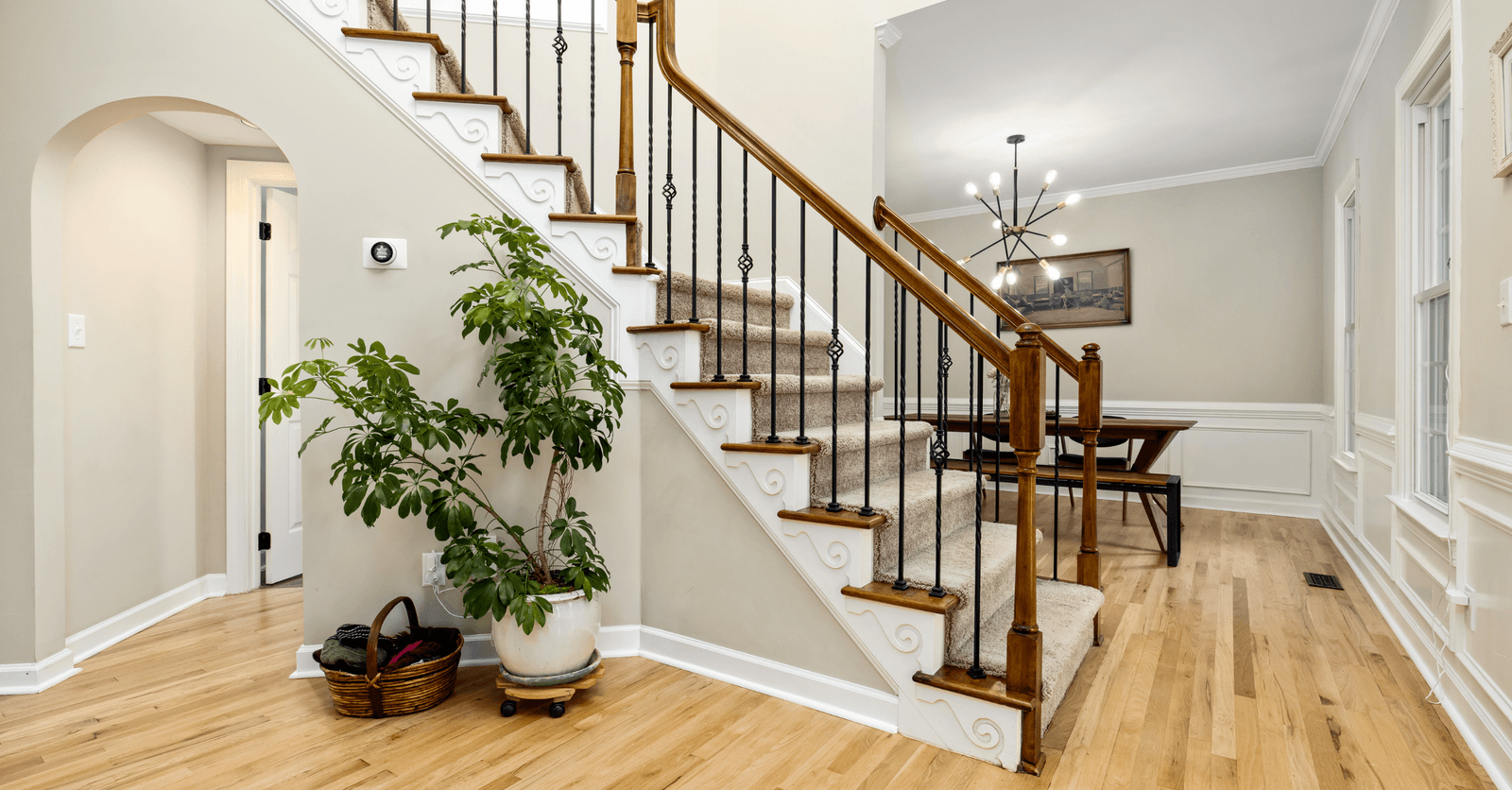

escalier dans un salon_Soumission Rénovation

As briefly mentioned in our introduction, interior staircase construction requires compliance with several standards. Before we provide more information about these, let's start by correctly defining each part of a staircase:

Walk: walk is the flat section on which an individual sets foot to climb a staircase

The riser: This is the vertical section that sits between each step

The step nose: this is the end of the step

The guardrail: This term refers to the barrier formed by the ramp and its bars (or the surface used to “close” the staircase)

The lap: This refers to the depth of the step (minus the length of the nose)

The stringer: This designates the wooden part on which the steps and risers rest

The handrail: This refers to the structure on which we rest our hand to climb the stairs

Spandrel: This term refers to the part located under the stairs, often used as storage space

The standards to follow for an interior staircase

Regarding the regulations that must be met when building an interior staircase, let's start by discussing the tread. Note that it should measure between 8 ¼ inches and 14 inches.  Most of the time, owners opt for a tread that measures between 9 ¾ and 10 ½ inches. Thus, the riser must not have a maximum height greater than 7 ⅞ inches.

For reasons related to comfort, we recommend respecting a distance of 6.6 feet between your steps and the ceiling, so that the taller among us avoid hitting our heads on the way up. For reference, the distance that separates the steps from the ceiling is called “the escape.”

The standards to follow for the ramp

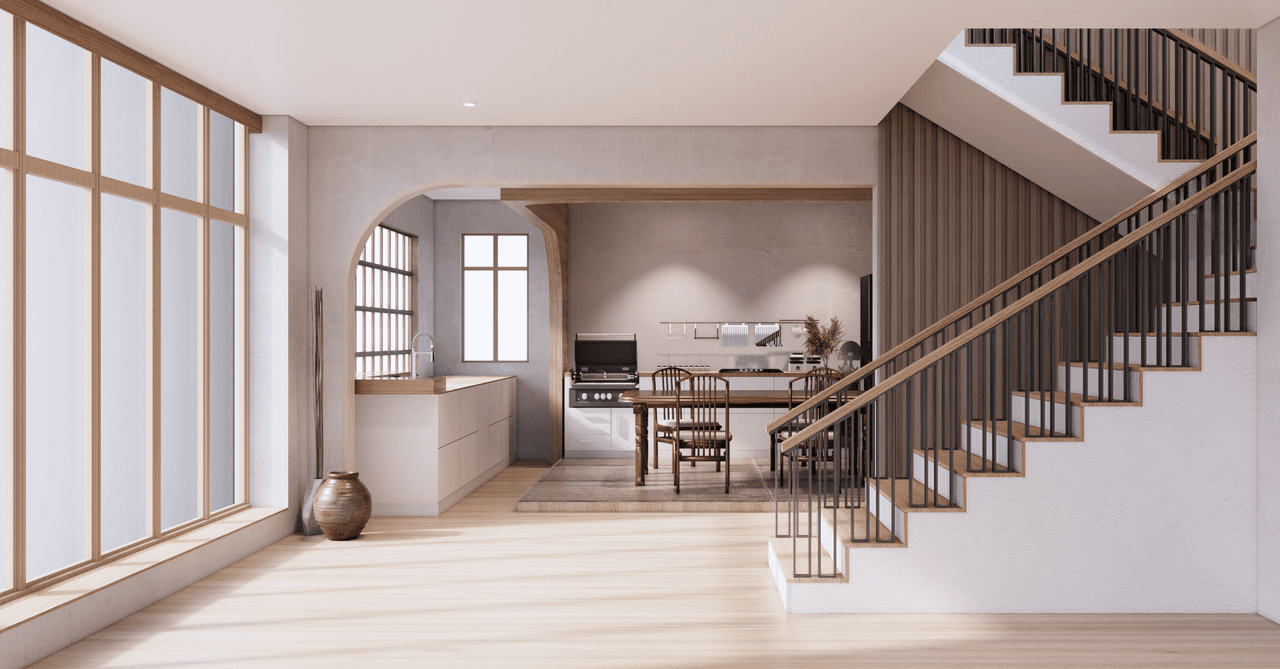

escalier dans un hall d'entrée_Soumission Rénovation

For the handrail (also referred to as the ramp), it absolutely must be a minimum of 36'' from the nose of the step and the space between it and the wall. Also, this must be restricted to 1 5/8 inch. Apart from these restrictions, note that the installation of a handrail is mandatory for all stairs that have a minimum of three risers and that are no more than 43” in width.

Are you thinking the width of your staircase will exceed 43 inches? In this case, you’ll need to install a handrail on either side. As for the minimum stair width, it should be 34 inches.

Although the nose of the step may seem like a less important aspect, be aware that it should ideally measure between 1 ¼ and 1 ¾ inches. The difference between the longest and the shortest nose should be no more than 3/8 in.

Also, note that the requirement to have a handrail applies to both inset stairs and stairs adjacent to only one wall. In the latter case, note that your ramp must be fitted with bars to form a guardrail with a minimum height of 36 inches.

Also worth noting is the bars shouldn’t be more than 4 inches wide, as this is meant to prevent a child from passing their body through them. Also for safety reasons, it’s better to choose a guardrail model with few horizontal elements, as these can be used by children as a means to climb up the ramp.

Further, you must keep in mind that the ramp shouldn’t change sides. This is a way to avoid confusing those with impaired vision.

The stair-riser ratio

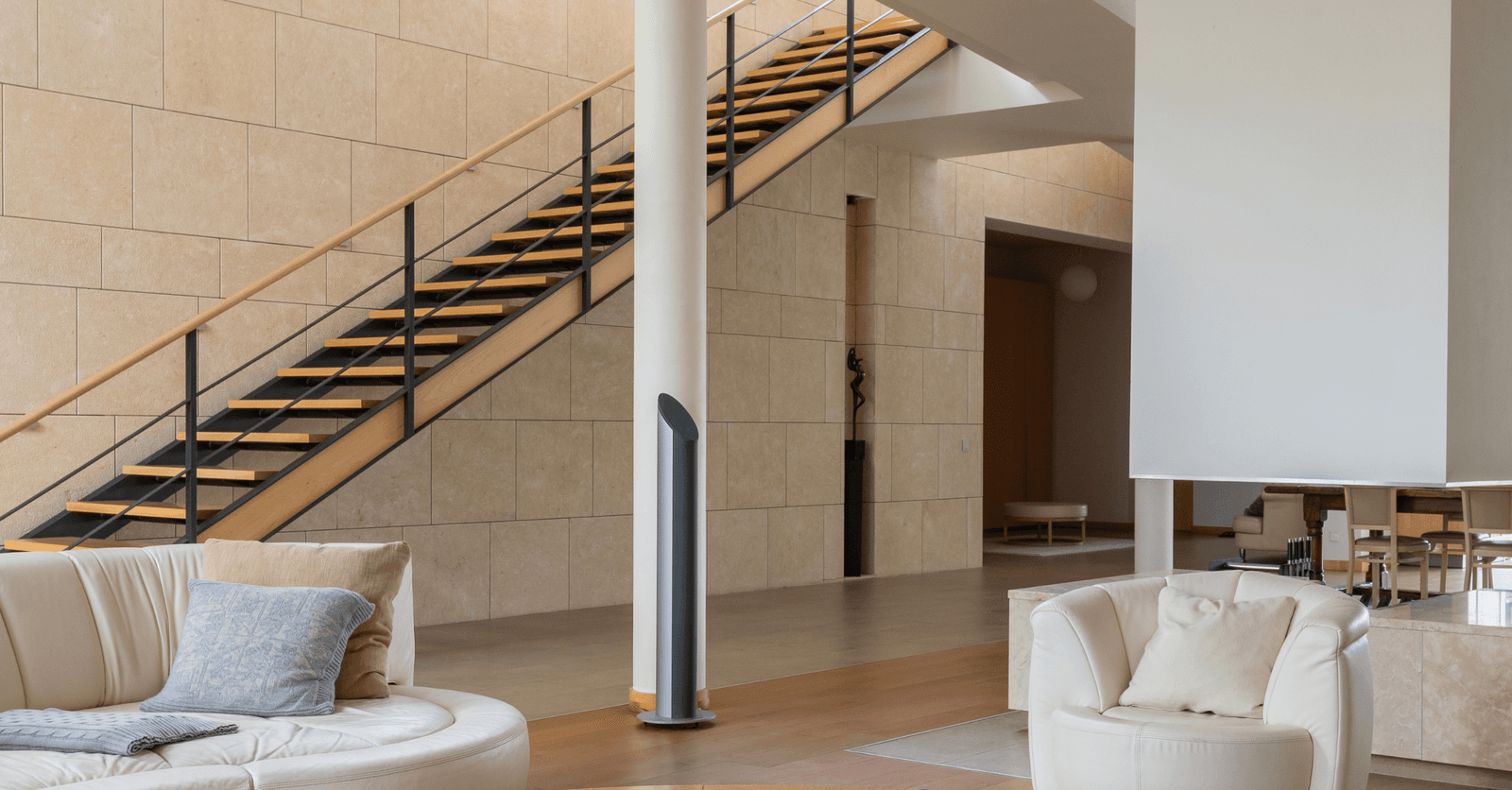

escalier intérieur_Soumission Rénovation

While we’ve already discussed the standards that various elements of your interior steps must meet, it’s time to talk about the tread-riser ratio for “L'' and ''U'' shaped stairs. Indeed, this is of great importance to ensure that your stairs are used safely. Basically, the sum of one step and two risers should be about 24 or 25 inches.

How to estimate the number of risers?

To estimate the number of risers your staircase will need, you must first determine its height and then, divide this by that of the riser. For "L" or "U" shaped stairs, it’s essential to subtract one or more risers from your calculation to account for a landing midway.

As for the step depth, it’s possible to assess this by measuring the distance between the bottom of the stairs and the next landing. Once you have this measurement, divide it by the number of steps. Be aware that the depth of a step should never be less than 10 inches, unless your staircase is curved. In this case, the depth should be no less than 6 inches.

An important note for square angles

We should mention that it’s important to be aware that a 90-degree corner cannot have more than 3 steps. This will prevent your stairs from having a surface area of ​​less than 30 degrees, which will pose a safety issue. The only type of staircase that doesn’t need to follow this rule is a spiral staircase, provided that its steps are of greater width.

Can you deviate from these staircase standards?

marche_Soumission Rénovation

Can you deviate from these staircase standards?

In order to answer this question, we’ll note that homes built before these standards were established are OK. This allows them to keep their staircase as it is, even though it doesn’t meet current standards.

However, this exemption doesn’t apply to recent constructions. For new buildings and homes, it’s mandatory to comply with the current, prevailing standards. If you deviate from these, you could be fined $100. This fine can be as much as $300 for buildings under municipal jurisdiction.

Remember that if you don’t comply with this article’s mentioned requirements, in the event of an accident inside your property, things could become even more complicated. In such circumstances, in the eyes of the law the owner could be held personally liable.

Are you looking for inspiration for the design of your interior staircase? Check out our article 7 staircase design models for your home.
