French Drain vs. Sump Pump: Roles and Foundation Waterproofing in Quebec

In Quebec, basement water infiltration is the most common type of residential insurance claim. According to the Insurance Bureau of Canada, water damage accounted for 68% of home insurance claims paid in Quebec in 2024. Harsh winters, major spring thaws, and heavy summer rainfall place considerable hydrostatic pressure on the below-grade portions of our homes.

When dealing with a damp basement, musty odours, or signs of efflorescence near the bottom of foundation walls, many homeowners wonder whether they need a French drain or a sump pump. Is one solution better than the other?

The technical reality is often misunderstood: French drains, sump pumps, and waterproofing membranes are not competing alternatives. These systems serve different purposes and can complement one another. The appropriate setup depends on factors such as site drainage, the presence of a gravity outlet, the water table, and the foundation design.

Understanding the Role of a French Drain in a Basement

Source: Soludrains et Fils Inc.

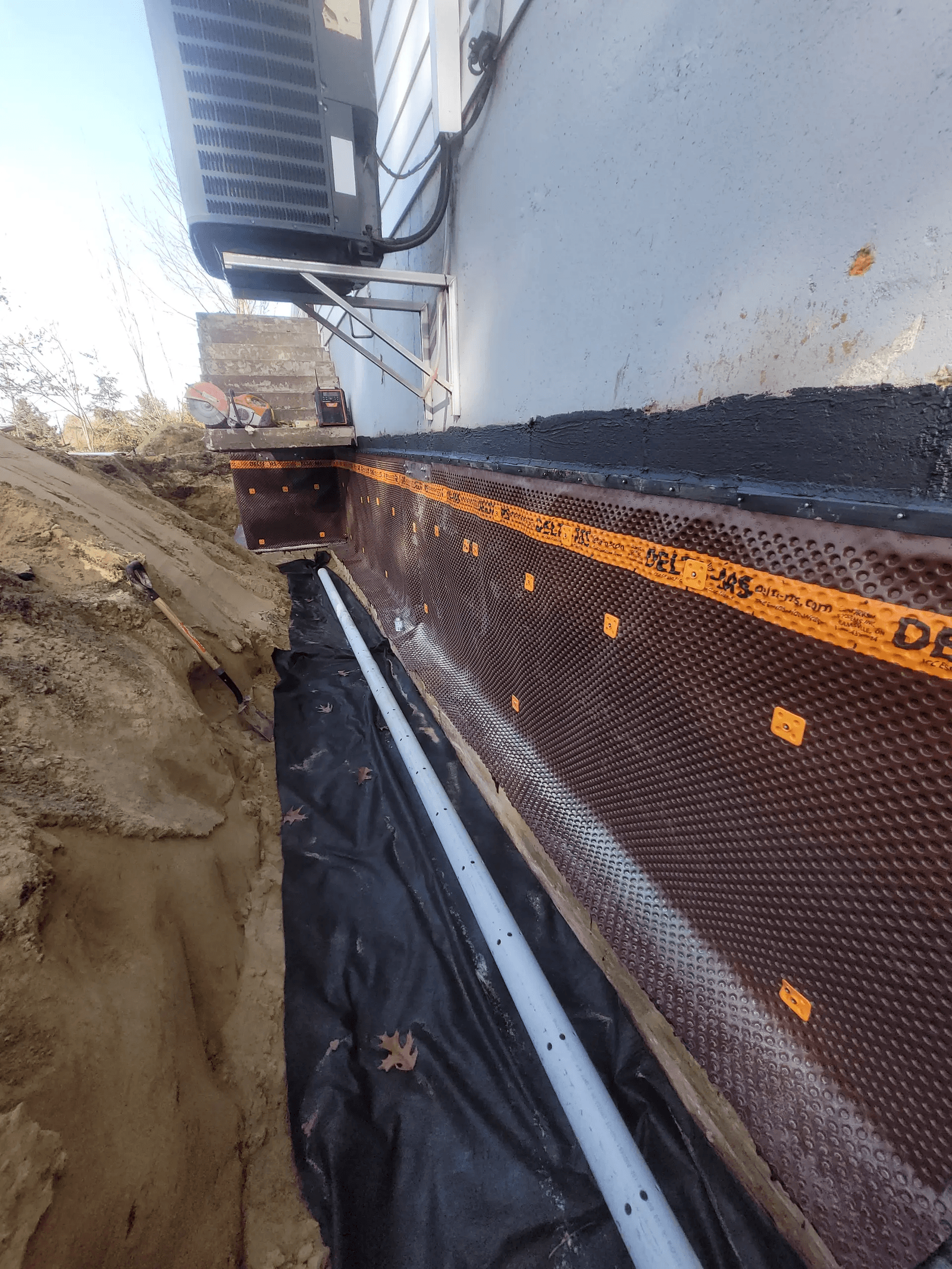

A French drain, also known as a foundation drain or weeping tile system, generally consists of a perforated pipe installed at foundation level to collect and remove water from the soil surrounding the building.

Its role is passive and gravity-based: it intercepts groundwater accumulating in the backfill around the home before it creates pressure against the foundation walls.

How an exterior French drain collects water:

1. Rainwater or melting snow infiltrates the backfill soil.

2. Water percolates through the 3/4-inch clear crushed stone bed and the filtering fabric.

3. Water flows into the French drain through its perforations at footing level.

4. Water flows by gravity toward an interior sump pit or stormwater system.

The drain is installed in a layer of granular drainage material and must be protected from fine particles in accordance with the system design and applicable requirements. A geotextile may be used to separate the backfill from the drainage aggregate. This filtering layer helps prevent soil and sand from clogging the pipe perforations.

In several regions of Quebec—including Montérégie, the Lower Laurentians, and Lanaudière—the soil contains iron bacteria that can produce iron ochre. This orange, gelatinous residue can completely clog a French drain within a few years. Where iron ochre is a concern, BNQ 3661-500 calls for accessible cleanouts to facilitate drain inspection and maintenance. These access points can make system maintenance considerably easier.

If you notice a blockage or collapse in your drainage system, request quotes for French drain installation to restore your system.

Types of Foundation Drains: Exterior vs. Interior

Although exterior installation remains the preferred approach for new construction or major foundation repairs, site conditions sometimes require alternative strategies.

Types of foundation drain installation:

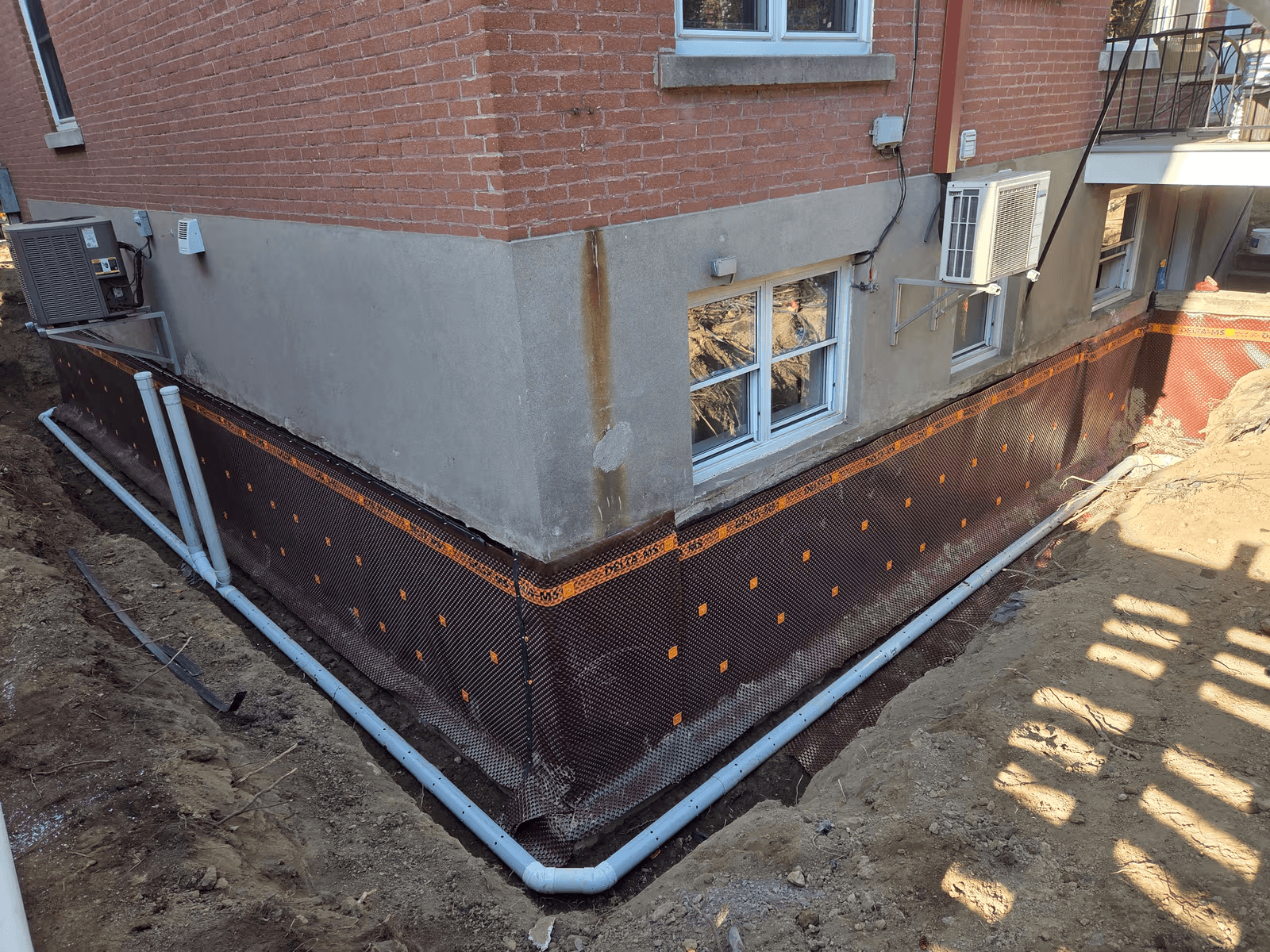

Exterior French Drain (Traditional Method)

• Installation: Full excavation around the perimeter of the home down to the footings.

• Advantages: Protects the foundation wall from the exterior and allows for the installation of a waterproofing membrane.

• Disadvantages: Higher costs ($100 to $250 per linear foot) and disturbance to the surrounding landscaping.

Interior French Drain (Corrective Under-Slab Method)

• Installation: Cutting the basement concrete slab along the foundation walls.

• Advantages: No exterior excavation required; well-suited to attached buildings or sites with adjacent structures.

• Disadvantages: Does not stop water before it enters the foundation area and requires a pump.

An interior drainage system can be an effective alternative when exterior excavation is not possible, such as when there is a large concrete patio, attached garage, paved driveway, or adjoining urban buildings such as triplexes in Montreal. Water entering through or around the foundation is collected below the slab and directed to the sump pit.

Understanding the Role of a Sump Pump

Source: Basement Systems Toronto

If the French drain is the water collection network, the sump pump is the mechanical component that removes the water. It is installed in a sump pit below the basement slab, with the pit size and capacity selected according to the expected water volume and the pumping system.

When the French drain collects water around the footing, gravity directs it toward the interior sump pit. As the water level rises, the pump float activates the electric motor. The pump then discharges the water outside the home through a discharge pipe fitted with a check valve.

Sump pump discharge requirements to verify in Quebec:

Municipal Restrictions

• In many municipalities, directly connecting a sump pump discharge line to the sanitary sewer is prohibited. Check the applicable municipal regulations before selecting a discharge location.

Discharge Requirements

• Where surface discharge is permitted, water should be discharged far enough from the foundation to prevent it from flowing back toward the building, in accordance with municipal requirements and site conditions.

• Depending on municipal regulations and the property configuration, water may be directed toward a landscaped swale, an infiltration system, or, where permitted, the municipal storm sewer system.

Proper design of the exterior discharge line is essential to reduce the risk of freezing. Depending on the configuration, a freeze-relief device may also be installed.

To bring your interior drainage system up to standard, you can get free quotes for sump pump installation from qualified professionals.

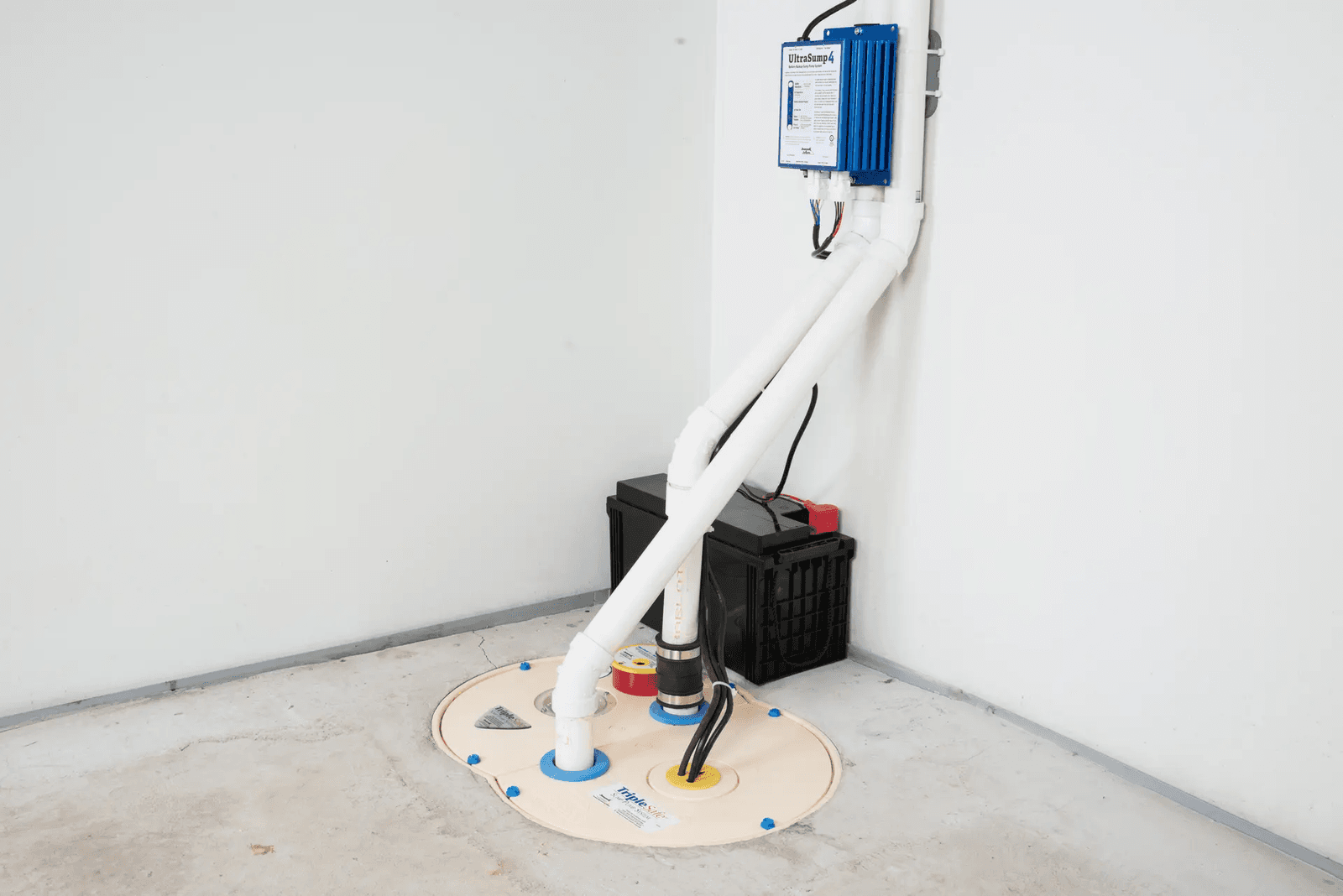

The Importance of a Backup Battery During a Power Outage

In Quebec, severe weather events—such as winter ice storms or major summer thunderstorms—are frequently accompanied by Hydro-Québec power outages.

A power outage can coincide with heavy rainfall or rapid snowmelt, precisely when the sump pump is under the greatest demand. Without backup power, the water level in the sump pit can rise quickly and potentially overflow.

A secure dual-pump sump system may include:

Main Pump (120 V AC)

• Powered by the home's electrical system.

• Handles normal day-to-day pumping, often with a 1/2 HP motor.

Backup Pump (12 V DC)

• Powered by a deep-cycle battery, often an AGM battery.

• Automatically takes over during a power outage.

High-Water Alarm

• Produces an audible alarm or sends a Wi-Fi notification to a mobile device.

The runtime of a battery backup system varies based on battery capacity, pump specifications, discharge head, and how often the pump cycles. Consult the manufacturer's specifications to determine the estimated runtime of the system you choose.

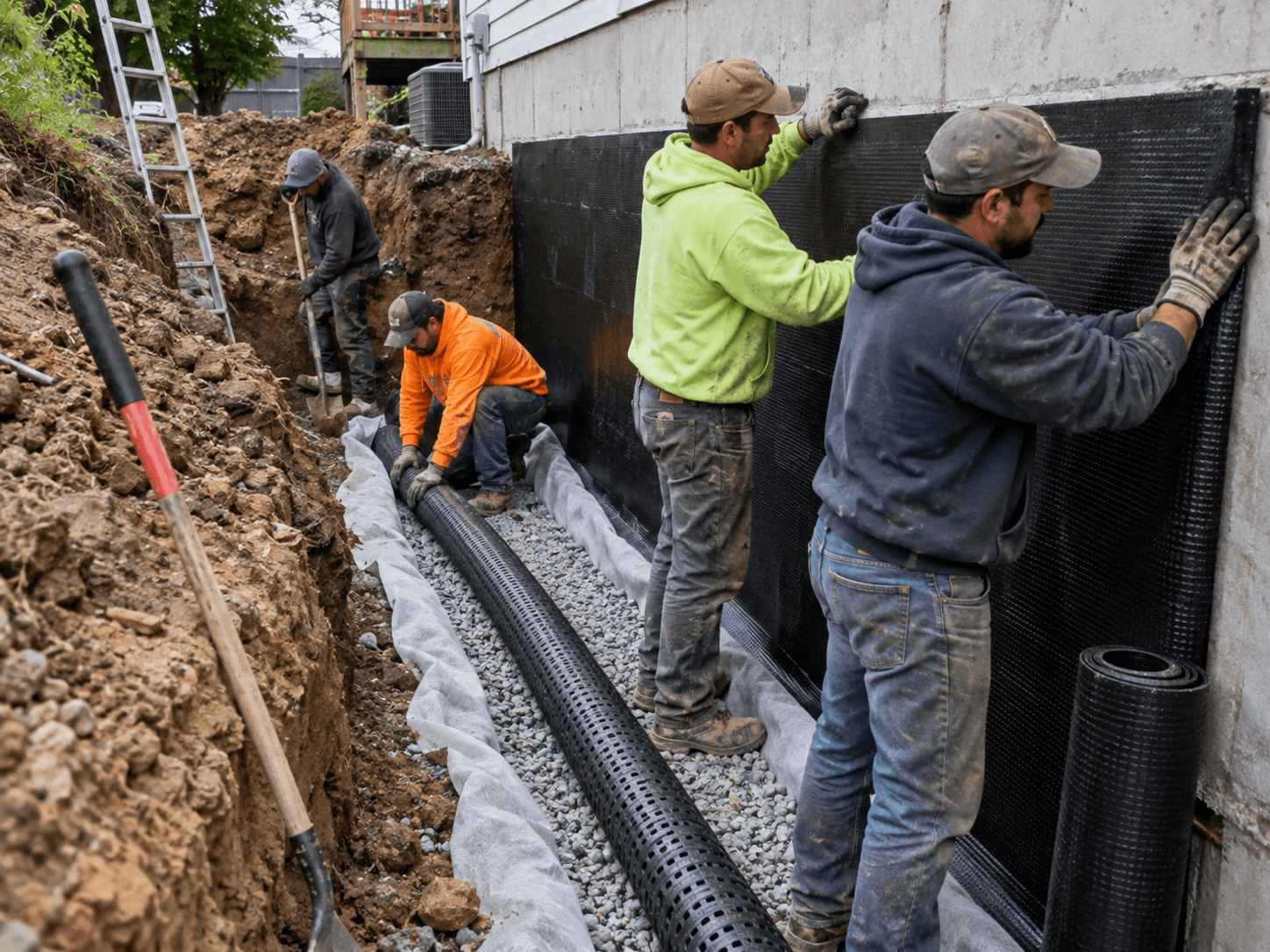

Foundation Waterproofing: Waterproofing Fabric

Source: Fissure Elite inc

Even with an effective French drain and a powerful sump pump, poured concrete remains porous. Microcracks and natural capillaries can allow concrete to absorb ground moisture through capillary action and permit water vapour to migrate through the material.

Foundation waterproofing involves applying a waterproof physical barrier directly to the exterior surface of concrete foundation walls, from grade level down to the footing.

A modern two-layer foundation waterproofing system may include:

Elastomeric Waterproofing Membrane (Sprayed or Adhered)

• Adheres directly to clean concrete.

• Depending on the product, some elastomeric membranes can achieve elongation greater than 300%, allowing them to better accommodate certain movements and microcracks in the substrate.

• Prevents liquid water from coming into direct contact with the structure.

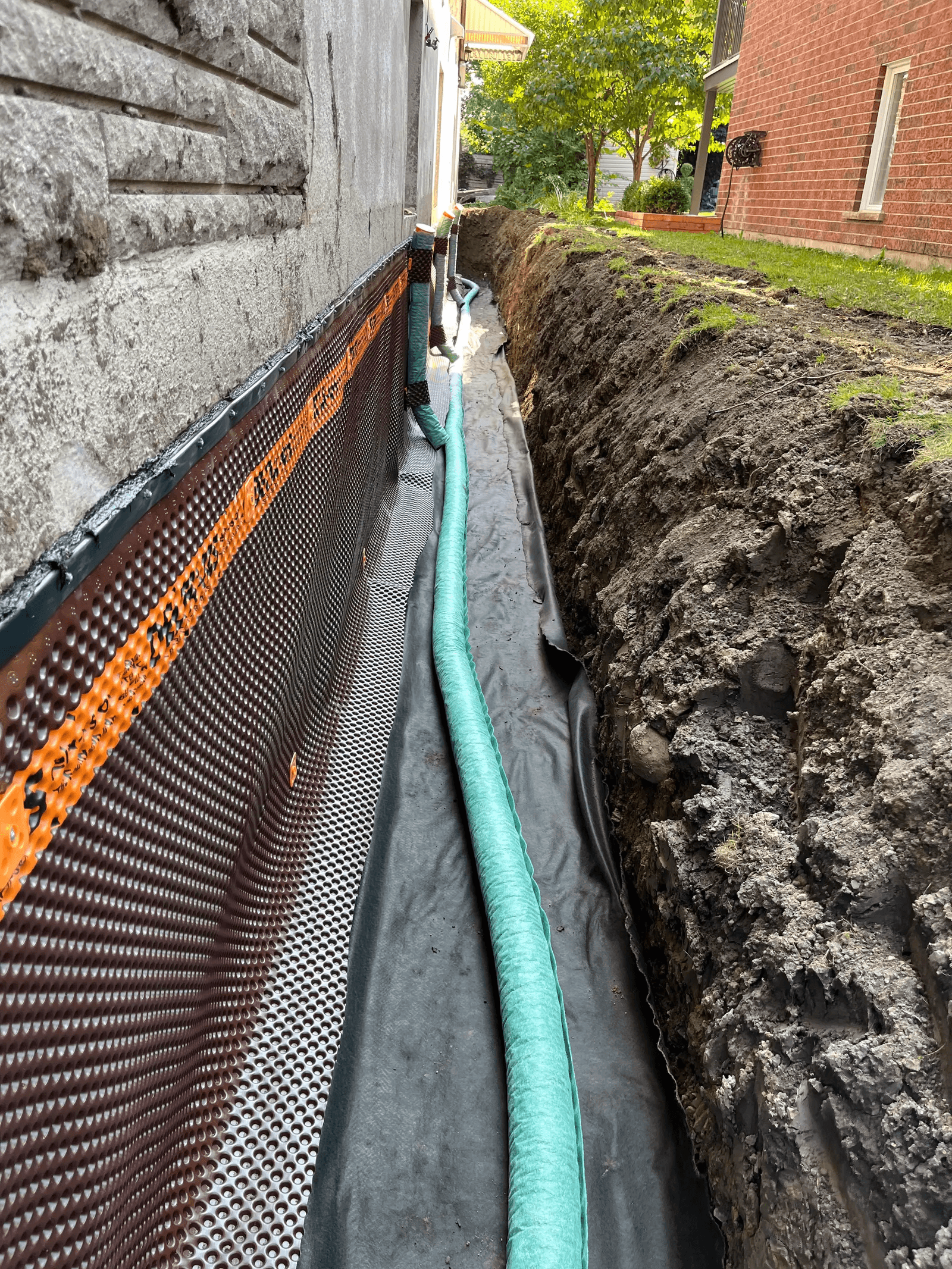

Dimpled Drainage Membrane (Such as Delta-MS)

• Rigid plastic panel with raised dimples.

• Creates a drainage and air space between the soil and the foundation wall.

• Directs water toward the French drain.

The older method of applying a simple coat of liquid tar or bituminous damp-proofing does not provide the same level of protection as a waterproofing system designed to resist water penetration and soil conditions. A properly designed and installed waterproofing system can remain effective for several decades, depending on the product, soil conditions, drainage, and installation quality.

To help protect your home from foundation moisture and cracking, you can estimate the cost of foundation waterproofing with experienced contractors.

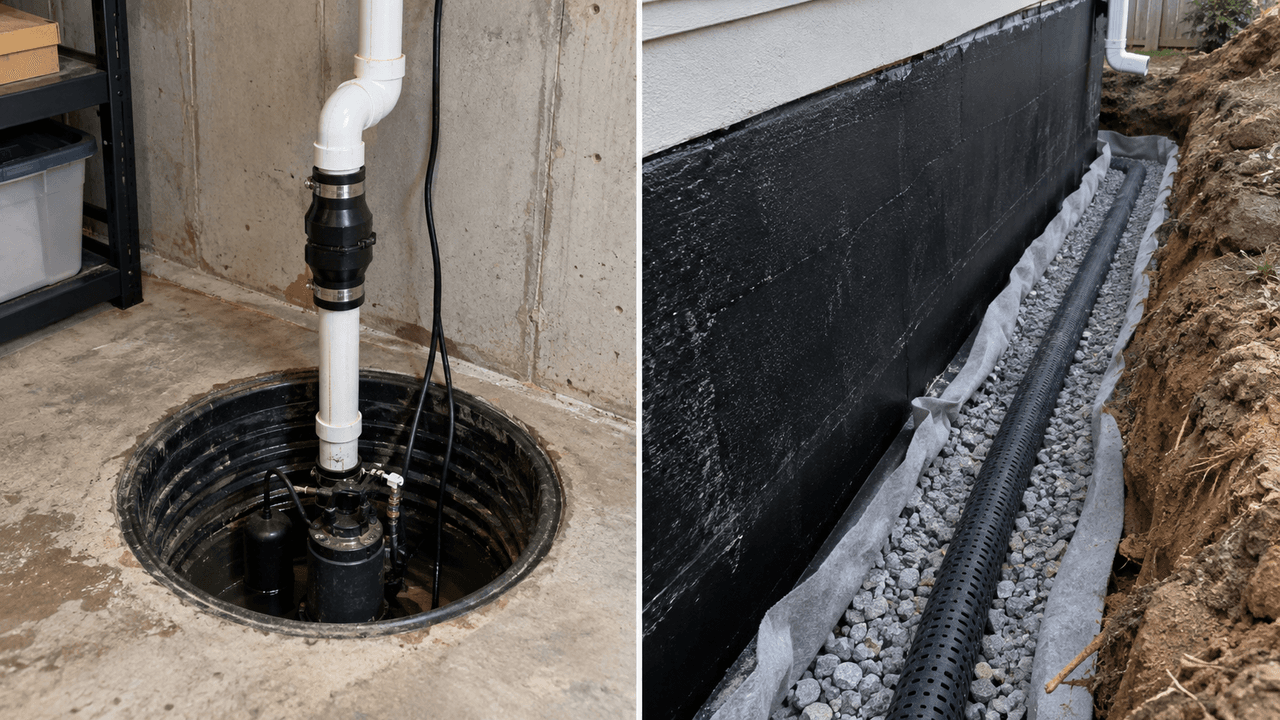

Comparison: French Drain, Sump Pump, and Waterproofing Fabric

Each component serves a specific technical purpose in a particular part of the building. The following table compares their main characteristics:

Are These Competing or Complementary Solutions?

Source: Excavation Comeau inc.

French drains, waterproofing membranes, and sump pumps perform different functions. Depending on the building and site conditions, they may be used individually or together.

What can happen when one component is missing?

1. Scenario A ➔ French Drain + Sump Pump WITHOUT Waterproofing Fabric: The French drain collects water, and the pump removes it, but an unwaterproofed concrete wall may remain exposed to ground moisture. Depending on the conditions, this can contribute to efflorescence, excessive moisture, and eventual deterioration of certain interior materials.

2. Scenario B ➔ Waterproofing Fabric + Sump Pump WITHOUT French Drain: The membrane limits water penetration through the walls, but without adequate drainage, water can accumulate around the foundation and increase hydrostatic pressure. This may increase the risk of water infiltration through joints or cracks.

3. Scenario C: The consequences vary depending on natural drainage, the water table, the presence of a gravity outlet, and the foundation design. The absence of one component may increase the risk of water infiltration when the remaining components cannot adequately manage water on their own.

When required and properly designed, these complementary systems can significantly reduce the risk of water infiltration and improve water management around the foundation.

RBQ Requirements and Choosing a Foundation Contractor

Source: RenoQuotes

Drainage, excavation, and waterproofing work can directly affect the structural stability of a building. Incorrect grading, improper backfilling, or damage to the foundation footing can lead to major settlement and costly repairs.

In Quebec, this sort of work is regulated by the Régie du bâtiment du Québec (RBQ).

Minimum regulatory and warranty considerations include:

1. Appropriate RBQ Licence

• Verify that the contractor holds the licence subclass or subclasses that correspond to the work being performed. Depending on the scope of the project, licences covering excavation and earthwork (2.5), waterproofing (7.0), or an appropriate general contractor licence may be required. Check the RBQ contractor repertory before signing a contract.

2. Protection Under the Civil Code of Québec

• Article 2118: Contractors and certain professionals or subcontractors may be jointly liable for the loss of the work occurring within five years after completion when the loss results from, among other things, a defect in design, construction, execution, or the soil.

3. Compliance With Municipal Requirements

• Obtain an excavation permit from the municipality where required.

• Have underground utilities and infrastructure located, including through Info-Excavation.

When choosing a foundation contractor, request a detailed written quote specifying the fabric type, brand and thickness, drain cleanouts, crushed stone type, and warranty on the work

You can find a qualified excavation contractor operating in your area to protect your investment and hire qualified professionals.
