Innovative and Eco-Friendly: How CLT Is Overhauling the Timber Industry

By Editorial Team

Updated on December 15, 2023

CLT stands for cross-laminated timber. It’s an engineered wood used in the construction industry to build single-family houses and tall buildings.

Eco-friendly, energy-efficient, and lightweight, CLT is gaining traction as one of the best construction materials, and here’s why.

The Makings and Characteristics of Cross-Laminated Timber

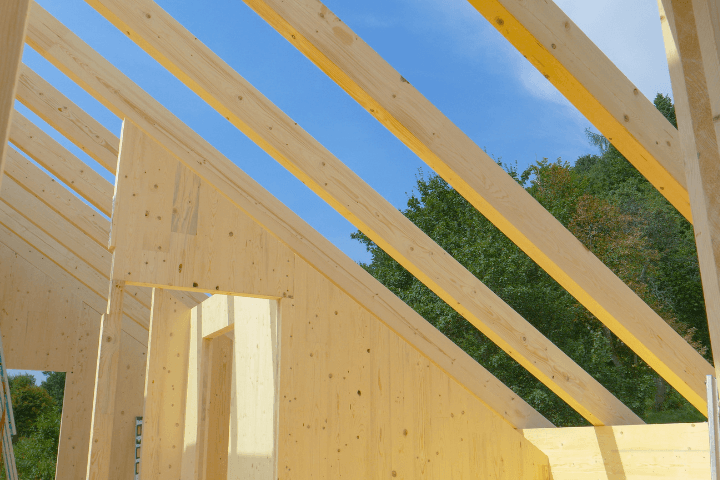

cross-laminated timber

CLT Technical Specifications

What type of wood is used to make CLT?

Cross-laminated timber is a structural element made by gluing timber lamellas atop one another, in a crosswise fashion, unlike glulam (glued laminated timber), which consists of adhering timber layers atop one another with the grain.

Timber lamellas are manufactured from:

  • Fir

  • Douglas fir

  • Spruce

  • Larch

  • Scots pine

The solid timber lamellas used can have identical or different mechanical properties (stress grades) and be joined vertically or horizontally.

We’ll delve further into the timber manufactured for transverse and longitudinal layers in the section dedicated to certifications.

Standard Dimensions

Cross-laminated timber beams can be:

  • 2.4 to 4.8 inches wide (60 to 210 mm);

  • 3.9 to 79 inches high (100 to 2,000 mm); and

  • 131 feet long (40 m).

Width

Typically, CLT is 45 mm thick, otherwise, it would be classified as glued solid timber. However, ANSI/APA PRG 320-2018 sets the limit at 20 inches (508 mm).

Load-Bearing Capacity

What matters with building materials is long-term resistance to creep (or cold flow). Meaning the material's capacity to withstand all deformation, even when undergoing significant mechanical stresses.

This matter is all the more important considering that CLT is typically used to build roofs and floors, which bear continuous dead loads. Therefore, engineers have to find solutions fit for CLT slab features.

In fact, if the panel’s joint isn’t sufficiently rigid, it may negatively affect the slab’s structural behaviour. This is especially evident when considering factors such as vibration and deformation.

However, a significant challenge for engineers arises in what’s known as the punching area in concrete structures. This term refers to the zone in which rolling shear (RS) is most impactful.

For CLT panels, this stress is all the more significant, so the rolling shear is applied perpendicular to the wood grain. Therefore, to ensure optimal and long-term load-bearing capacity, solutions intended for the connectors were devised. Some connectors, such as the SPIDER connection system, increase the load-bearing capacity by 82%.

Certifications

All wood construction products can be FSC-certified. Cross-laminated timber isn’t any different. It’s a certification awarded by the Forest Stewardship Council. It certifies that the wood used was harvested from a sustainably managed forest in terms of the following standpoints:

  • Social

  • Environmental

  • Economical

Should you be using cross-laminated timber to construct your building, you may be eligible for LEED certification, which rates the sustainability of your structure. Naturally, using the aforementioned material is but one of the many other factors to consider to have a green-built home.

Quality Standards

Cross-laminated timber is made up of 7 stress grades. These are detailed in the Standard for Performance-Rated Cross-Laminated Timber, and note that stress grade E1 is the most common.

Grades

Longitudinal Layers

Transverse Layers

E1

SFP lumber (spruce-fir-pine)

SFP lumber (spruce-fir-pine)

E2

Douglas fir and larch lumber

Douglas fir and larch lumber

E3

Eastern softwood, Northern species or MSR-rated Western lumber

Eastern softwood, Northern species or Western lumber

E4

MSR-rated Southern yellow pine (SYP)

Southern yellow pine (SYP)

V1

Douglas fir and larch

Douglas fir and larch

V2

SFP (spruce-fir-pine)

SFP (spruce-fir-pine)

V3

Southern yellow pine (SYP)

Southern yellow pine (SYP)

The mechanical resistance of each grade is determined by measuring their resistance to:

  • bending stress;

  • compression stress parallel to the grain;

  • tension force; and

  • shear stress.

In addition to the grades mentioned earlier is the CSA 086 standard, which references the structural design and evaluation of wood structures.

You can use the Nail-Laminated Timber Canadian Design & Construction Guide to pinpoint the architectural and structural uses of cross-laminated timber.

Acoustic and Thermal Performance of CLT (Cross-Laminated Timber)

For a CLT panel, the most optimistic sound absorption coefficient is measured at 0.21. However, other studies have shown a coefficient that sits between 0.02 and 0.13.

For comparison’s sake, materials specifically designed for soundproofing, such as glass wool, have coefficients between 0.65 and 1 or 0.20 to 0.70 for polyurethane.

A coefficient of 1 indicates full sound absorption, making CLT a valuable material. However, don't overlook the importance of using an additional soundproofing material.

The same goes for CLT's thermal insulation properties. While it has a 0.13 W/m.K lambda, which makes it a much better insulator compared to reinforced concrete (2.3 W/m.K), it still doesn’t exceed the insulation capacity of cellular concrete (0.13 W/m.K). Therefore, it’s a decent structural material yet isn’t a standout in terms of thermal insulation capacity.

Fire Resistance of Cross-Laminated Timber Structures

In case of a fire, a CLT floor slab must have a load-bearing capacity of at least 240 minutes. To validate a structure’s fire resistance, during the testing period, the room temperature must reach 950°F (510°C) at least once.

As the CLT panel is burning, a layer of char forms, thereby protecting the wood structure from further deterioration.


Common Uses of Cross-Laminated Timber

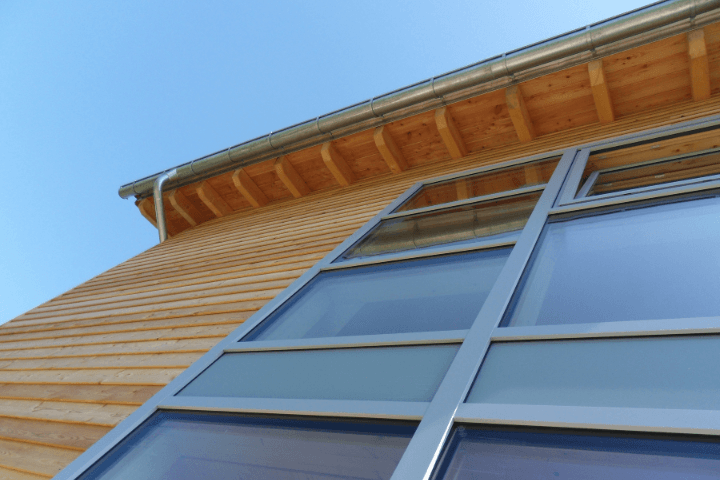

cross-laminated timber

Benefits of a Cross-Laminated Timber Construction

Lightweight

CLT is 80% lighter than concrete, with a density of 470 kg/m³, compared to 2,700 kg/m³ for the former. The long-span application of cross-laminated timber measures up to that of concrete, while requiring foundations and floor systems that aren’t as thick.

Fast-Track Construction

Spanning up to 131 feet (40 m), the structural components of CLT make building several stories at once possible on worksites with better dimensional stability.

To further fast-track the process, CLT panels are fitted with a lifting system (a sort of web sling). Such a tactic results in a 60% bump in worksite efficiency.

Used per the principles of lean manufacturing, CLT components are delivered on-site and assembled without delay, bypassing the need for storage.

Manufacturers are also devoting time to designing environment-specific connectors based on where the CLT will be employed:

  • Wood component

  • Steel component

  • Concrete component

To secure two CLT panels together, self-drilling screws are sufficient to guarantee adequate axial and lateral load resistance.

Durability

The lifespan benchmark for cross-laminated timber panels is 100 years. During this period, the panels can meet their structural functions.

Long term, panels can store 826 kg of CO2eq. per unit of CO2 EF (biogenic carbon emission factor). Hence, it's a major factor in mitigating climate change.

Environmental Impact

From an environmental standpoint, CLT has a really positive impact. Why, you ask? Because CLT panels are made of wood, meaning they can store up to 1 ton of carbon per cubic metre.

Moreover, using cross-laminated timber instead of concrete and steel is a way of curbing the use of materials responsible for 50% of the CO2 emissions in the construction industry.

Studies have shown that using CLT can reduce the impact tall buildings have on the environment by almost 40% compared to traditional materials.

Architectural Versatility

Versatility is the word of choice to describe cross-laminated timber. Its properties are very close to that of precast concrete panels, yet more lightweight.

CLT prefab panels make it possible to accurately configure all openings (doors and windows).

Energy Efficiency

A building’s envelope, which consists of CLT panels, boasts two advantages. Namely, they are:

  • Solid

  • Airtight

CLT panels allow for significant energy savings compared to standard building materials. However, it’s especially efficient in cold regions like Canada.

A Chinese study determined that CLT can retain heat during winter, limiting energy consumption by 11% to 23% in some regions. However, its thermal performance isn’t as conducive to cooling during summertime. In other words, building a house with CLT in Canada is a much more sensible choice than in South America.

Comfort

In areas with a harsh climate, such as Canada, CLT retains the heat produced by radiators throughout the entire home. Given its hygroscopicity, it also regulates humidity inside divided areas.

CLT panels are porous and counteract water vapour diffusion, limiting condensation problems in a dwelling.

Cross-Laminated Timber Panels and Floors

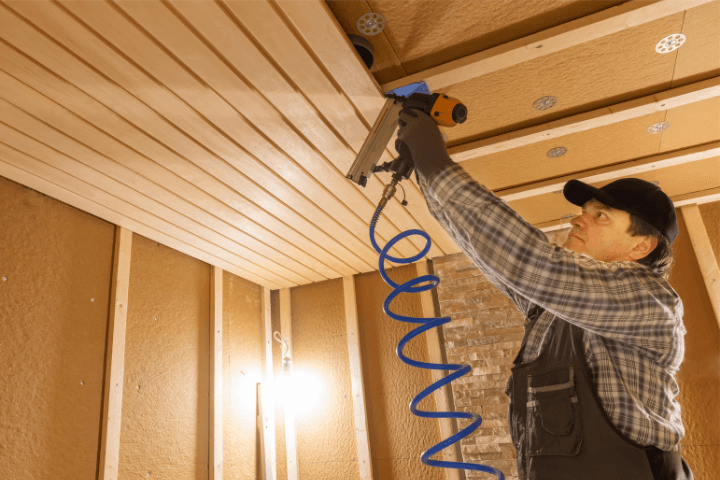

cross-laminated timber

Cross-laminated timber panels streamline worksites by facilitating the construction of long-span floors with high mechanical performance. CLT composition makes for an ideal load distribution across an entire structure.

The mechanical strength evaluation methods used are adjusted based on the wood grade of the species in question.

Glulam vs. X-Lam (CLT): Manufacturing and Application

CLT is made up of at least 3 laminated panels. To ensure optimal dimensional stability, the panels are layered crosswise and glued together. This layering method prevents moisture from building up between the layers and warping the panels.

Cross-laminated timber is used in numerous industries:

  • Oil and gas extraction (platforms)

  • Roadwork (temporary access ways)

  • Residential, industrial, and commercial construction

Specifically, CLT is used to build:

  • Walls

  • Ceilings

  • Floor slabs

  • Framework

  • Balconies

  • Stairs

Since it can be paired with concrete, CLT can be employed to build tall buildings. We’ll delve into this matter later on.

As for glulam (glued laminated timber), it’s mainly used as a load-bearing structure. For the most part, it’s used to replace timber frames.

What’s the difference between CLT and glulam?

Well, cross-laminated timber made lemonade out of glulam’s lemons. CLT has fewer issues with:

  • Shrinkage

  • Breakage

  • Fissures

Its resistance and stability are also a cut above glulam. While shrinkage is still an issue with cross-laminated timber, its superior structural stability is undeniable.

As such, cross-laminated timber-built structures make it possible for architects to design not only tall buildings but also more spacious ones.

The Tallest CLT and Glulam Buildings

In Wisconsin, an architectural firm was at the forefront of a CLT- and glulam-built structure, standing at 282 feet (86.6 metres) tall. To this day, it’s still the tallest CLT-made building in the world.

In Holland, a 21-storey CLT-made building was erected on a concrete foundation. The cherry on top? It has a rooftop garden, cisterns to store rainwater, as well as 4,921 ft² (1,500 m²) of solar panels.

However, the environmental award goes to a Swedish building designed by the architectural firm White Arkitekter. CLT- and glulam-made, its environmental impact will be non-existent throughout its lifespan.

Cross-Laminated Timber House

cross-laminated timber

CLT—created roughly 30 years ago in Germany and Austria—is starting to make its way through the North American construction sector. However, after their 2018 legislation change, the states of Washington and Oregon authorized CLT constructions on their respective lands.

In July 2022, California followed suit, authorizing the IBC-incorporated product (International Building Code) since 2015 by the American National Standards Institute.

As for Canada, specifically the province of Quebec, the action taken was much swifter given that the regulation was made more lenient in 2015, following the implementation of the Charte du bois (forest policy framework) in April 2013. Therefore, you can build a CLT home, stress-free, even a multi-storey building.

This engineered wood product is the future of residential construction considering the mitigation of CO2 emissions—which is made possible by the use of CLT— and heat-retention capacity in wintertime.

CLT: When Functionality and Sustainability Redefine Construction

Cross-laminated timber is characterized as a functional and sustainable material that meets modern-day construction requirements. Based on the advantages detailed above, such as structural strength, architectural versatility, environmental sustainability, and streamlined construction, it's an exceptional pick. Whether it’s used for residential, commercial, or industrial building projects, CLT is an aesthetic and effective alternative to traditional construction methods. By choosing cross-laminated timber, you’re essentially investing in a material that combines modernity, energy efficiency, and environmental sustainability.

The rise of CLT marks a genuine sustainable revolution in the timber industry, paving the way to greener construction practices, and meeting the growing need for sustainability. This innovative material, derived from cross-laminated timber technology, offers a promising alternative to traditional construction methods, favouring the mitigation of carbon emissions, preserving natural resources, and creating greener infrastructures. By investing in CLT, the wood and timber industry is emphasizing its capacity to evolve toward more sustainable practices, thereby contributing significantly to the fight against climate change.
