How to Install a French Drain in Canada: Steps and Mistakes to Avoid

Are your concrete basement walls showing signs of moisture, water infiltration, or white deposits? The culprit could be a drainage problem around your foundation. In some cases, installing a French drain can help manage excess water and protect your home from moisture-related damage.

How to install a French drain properly? How deep should it be, what materials should be used, and what common mistakes should be avoided? Here are the essential steps for installing a French drain in Canada, along with the costs and precautions to consider before getting started.

What Is a French Drain and How Does It Work?

Source: Canva

A French drain, also known as a foundation drain or perimeter drain, is an underground drainage system designed to collect and redirect excess water from the soil surrounding a house.

It generally consists of a perforated pipe surrounded by drainage stone and, depending on the system's design, a geotextile membrane. Water passes through the granular materials, enters the pipe, and is directed toward an appropriate drainage outlet.

This system helps to:

• Reduce water accumulation around the foundation

• Limit the risk of water infiltration in the basement

• Reduce hydrostatic pressure against foundation walls

• Protect building materials from moisture-related damage

• Complement foundation waterproofing work

However, it's important to distinguish between a foundation drain, installed near the footing, and a surface French drain designed to remove standing water from a yard.

When to Install a French Drain?

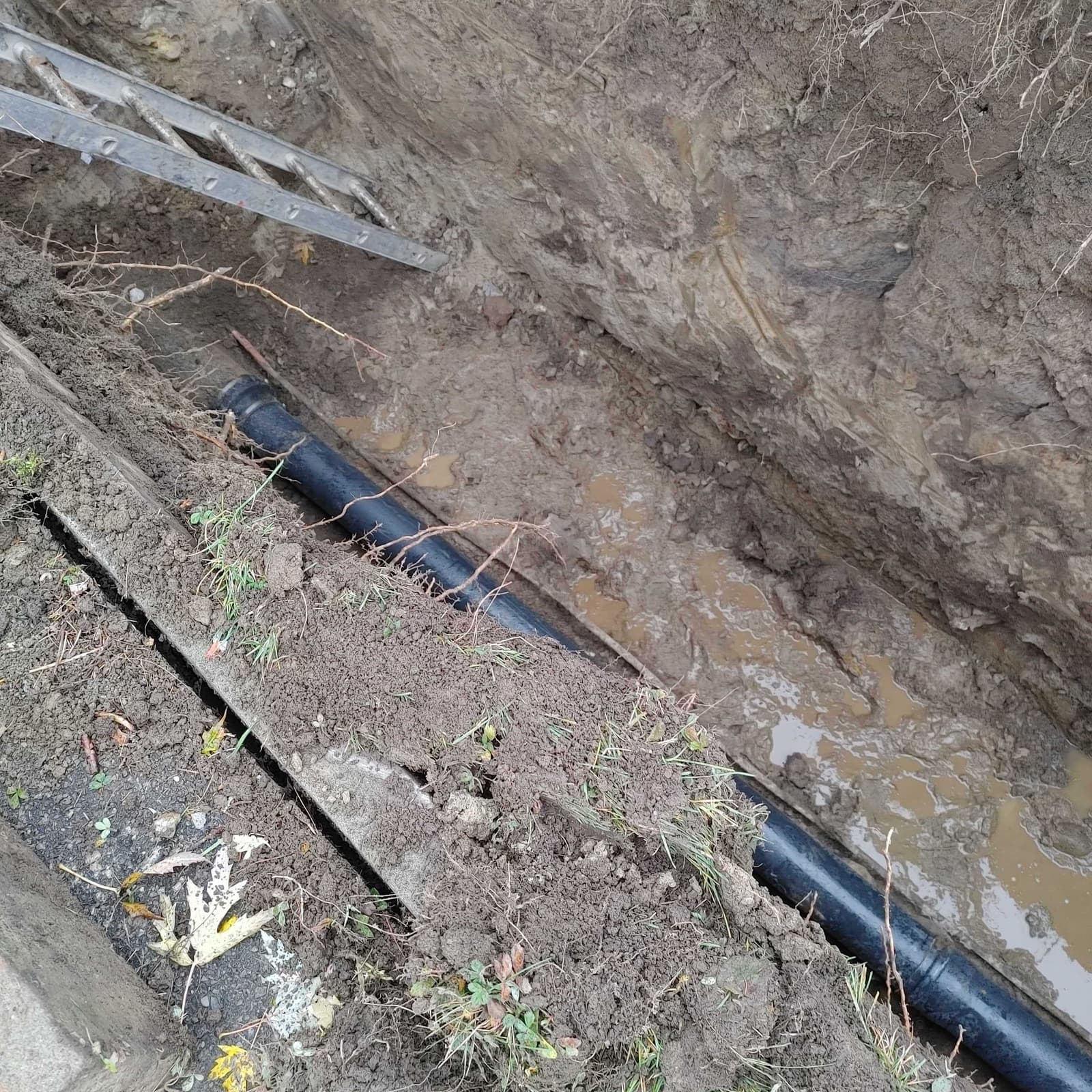

Source: Solusec Inc.

Installing a French drain may be necessary when water regularly accumulates around the foundation or when the existing drainage system is no longer working properly.

Certain warning signs may indicate a drainage problem:

• Water leaking in the basement after heavy rainfall or snowmelt

• Persistent moisture on walls or floors

• White deposits, known as efflorescence, on concrete surfaces

• Musty odours or excessive humidity

• Standing water near the foundation

• Cracks accompanied by water infiltration

These symptoms don't necessarily mean the French drain needs to be replaced. A foundation crack, waterproofing defect, or improper yard grading may also be responsible.

An inspection can help determine whether a new drainage system is necessary or whether targeted repairs would be sufficient.

How to Install a French Drain Step by Step

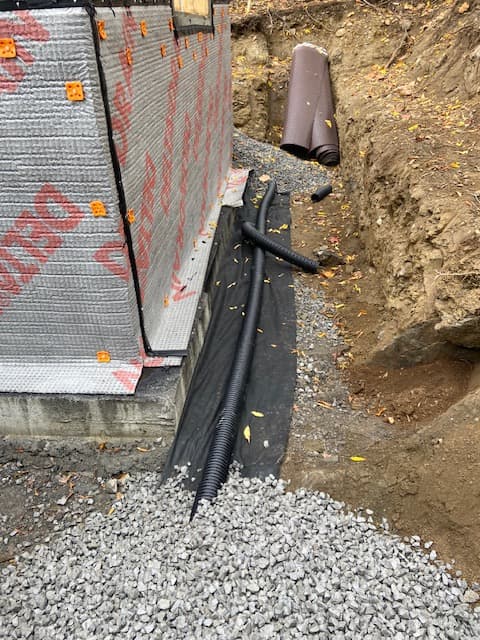

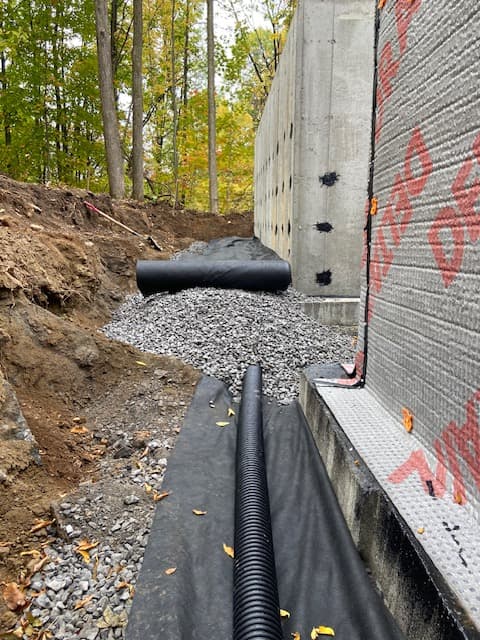

Source: Fissure Elite inc2

Installing a French drain around a house involves excavating near the foundation, properly preparing the ground, and connecting the system to an approved drainage outlet.

The following steps outline the general installation process. Dimensions, materials, and methods must be adapted to site conditions, manufacturers' recommendations, and applicable local building requirements, including those in Quebec.

Step 1: Assess the Property and Prepare for Excavation

Before starting, examine the property's layout, foundation depth, and areas where water tends to accumulate.

This assessment helps determine:

• The drain's route around the house

• The depth required to reach the base of the foundation

• The slope and direction of water flow

• The location of the drainage outlet

• Obstacles that could complicate the work, such as decks, stairs, or trees

You should also check municipal regulations, obtain any required permits, and have underground utilities located before excavation begins.

Step 2: Dig a Trench Around the Foundation

Excavation involves removing soil along the foundation walls to reach the required depth for the drain.

For an exterior foundation drain, the pipe is generally installed near the foundation footing on a stable base. Its exact position depends on the building's design and applicable requirements. The trench must be wide enough to accommodate the pipe, drainage materials, and equipment needed for installation.

An incorrect depth can prevent the drain from collecting water effectively near the foundation. Excavating beneath the footing without an appropriate support method or engineered design should also be avoided, as it could compromise the building's stability.

Step 3: Inspect and Waterproof the Foundation

Once the foundation walls are exposed, it's a good opportunity to inspect their condition.

The contractor may:

• Clean the concrete surfaces

• Identify cracks and deteriorated areas

• Carry out necessary repairs

• Apply a suitable waterproofing system

• Install a protective or drainage membrane when required

This step is important because French drains and waterproofing serve complementary purposes: the drain redirects water accumulating in the soil, while waterproofing helps prevent it from penetrating the foundation walls.

To learn more about the different methods, consult our guide to foundation waterproofing.

Step 4: Install the Geotextile Membrane and Gravel

The bottom of the trench must be prepared to accommodate the drainage system. Depending on the design, a geotextile membrane is installed to separate the natural soil from the granular materials. It helps prevent fine soil particles from migrating into the drainage layer and gradually clogging the drain.

A layer of clean drainage stone is then placed to create a suitable base for the pipe. Clean, graded crushed stone is commonly used for this type of installation. The stone size and layer thickness must meet the selected system's specifications to ensure proper water flow.

Step 5: Lay the Pipe and Ensure Proper Drainage Slope

The perforated pipe is placed on the prepared base, generally along the perimeter of the foundation. Rigid perforated PVC pipes are often preferred because of their durability and ease of inspection. Other products may also be suitable if they are designed and approved for this application.

The pipe must be positioned to collect water effectively and direct it toward the drainage outlet. What slope should a French drain have? The required slope depends on the property's layout, the type of drain, and the drainage system. When gravity drainage is used, elevations must be calculated to allow water to reach the outlet without creating unintended low points.

There is no single slope that applies to every installation. A specialized contractor should verify the applicable technical requirements before laying the pipe.

Step 6: Install Cleanouts and Connect the Drain

Cleanouts or inspection risers provide access to the system for camera inspections or cleaning if a blockage occurs. Their locations should be planned during installation, particularly in areas that would otherwise be difficult to access.

The pipe is then connected to an appropriate drainage outlet. Depending on the property and municipal regulations, water may be directed to an approved gravity drainage system or to a sump pit equipped with a sump pump.

It's important to verify local regulations before connecting the drain. Water must not be discharged toward neighbouring foundations or into an unauthorized drainage system.

To understand how these systems work together, consult our article on French drains and sump pumps.

Step 7: Cover the Drain and Backfill the Trench

Once the pipe is installed and the connections have been checked, the drain is covered with drainage stone according to the system's specifications.

If the design includes a geotextile envelope, it is folded around the drainage layer to help prevent fine soil particles from entering. The trench is then backfilled with appropriate materials, taking into account soil permeability and compaction requirements.

Finally, the ground must be graded to direct surface water away from the house. This last step is essential to prevent rainwater and snowmelt from accumulating directly against the foundation.

What Materials and Tools Do You Need to Install a French Drain?

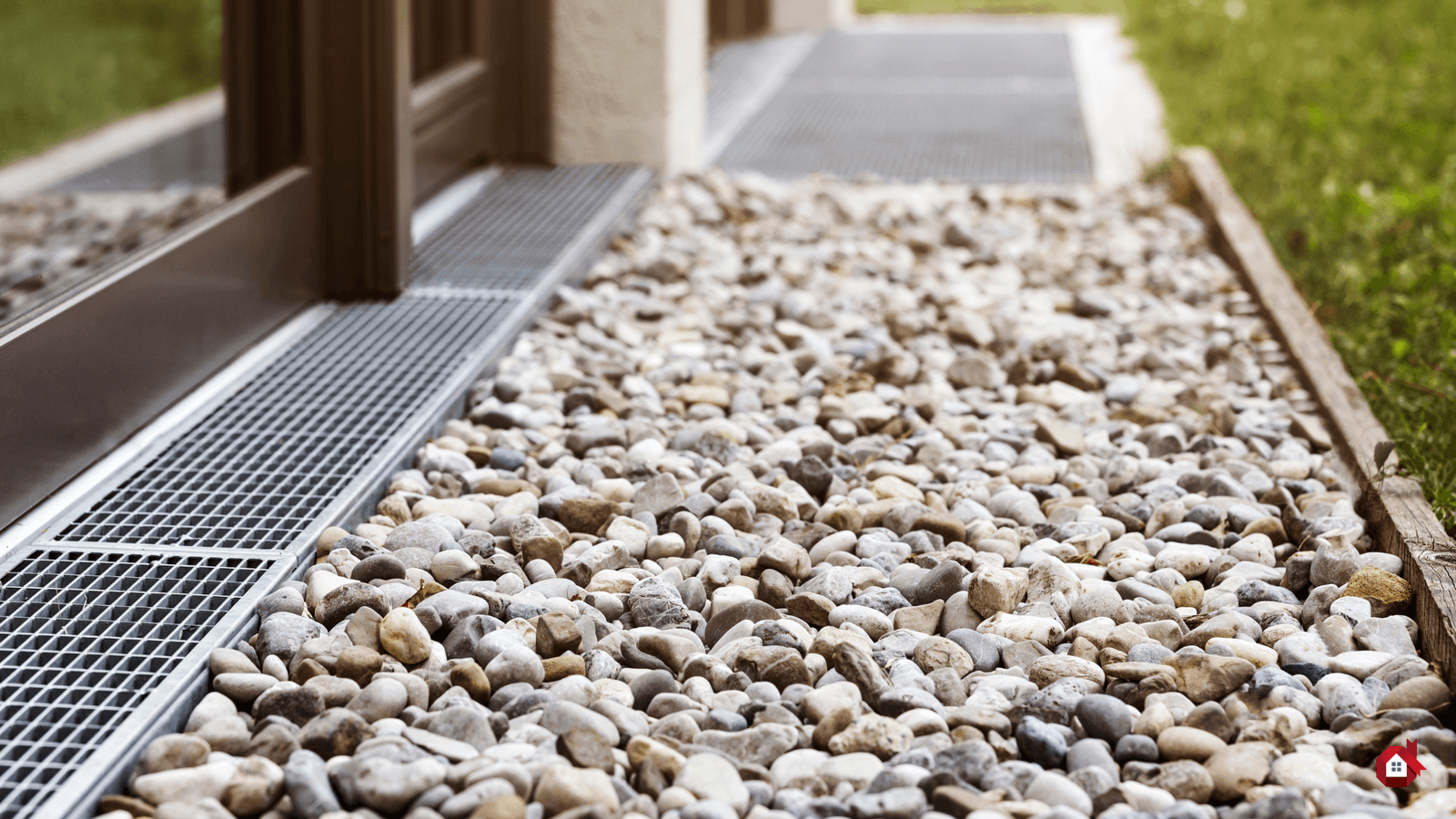

Source: Canva

The choice of materials directly affects the drainage system's effectiveness and durability.

Here are the main materials and tools generally used during installation.

The exact materials depend on soil type, moisture conditions, and the selected system. For foundation drainage installations, it's best to hire a contractor with the appropriate qualifications and licences required in your province. In Quebec, this includes the applicable RBQ licence.

What Are the Most Common French Drain Installation Mistakes?

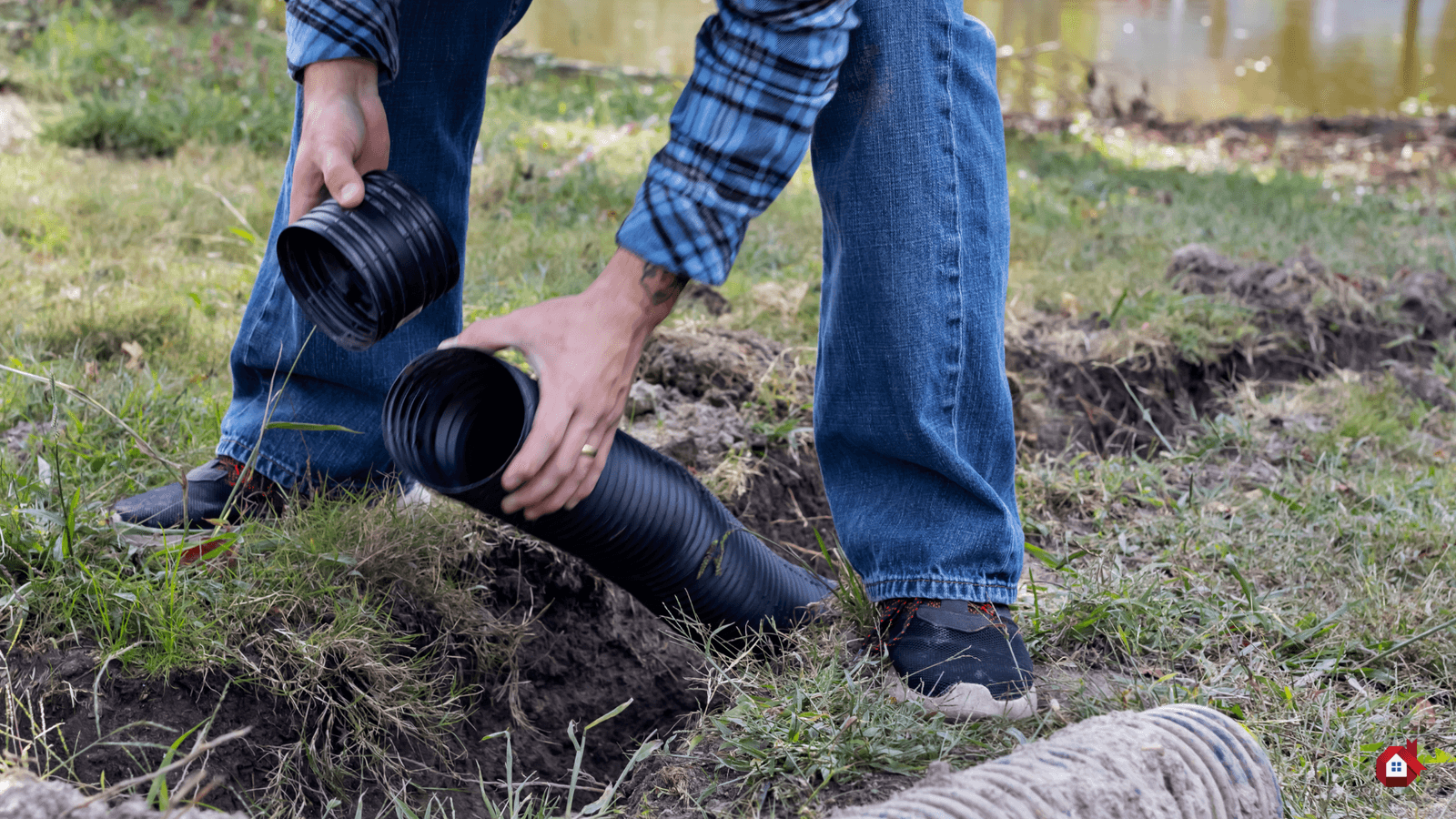

Source: Gestion Carufel Inc.

Improper installation can reduce drainage efficiency and lead to long-term moisture problems. Here are four common mistakes to watch out for.

An Improper Slope or Drainage Outlet

A poorly positioned drain or one connected to an unsuitable outlet can cause water to accumulate within the system. Even with quality materials, water may not drain effectively.

To prevent this problem, check the elevations and make sure the system has an appropriate drainage method, whether it relies on gravity or a pump.

Choosing the Wrong Materials or Waterproofing Fabric

Using an unsuitable pipe, stone containing too many fine particles, or an improperly selected geotextile can encourage sediment buildup and blockages. The geotextile must be compatible with the soil's characteristics to provide adequate filtration without clogging prematurely.

Improper Excavation or Backfilling

A poorly sized trench or excavation carried out without proper precautions can compromise drainage and, in some cases, foundation stability.

Likewise, improper backfilling can reduce soil permeability around the pipe or cause settling problems. These operations must therefore follow the drainage system's specifications and site conditions.

Neglecting Surface Drainage and Maintenance Access

Ground that slopes toward the house or poorly positioned downspouts can increase the amount of water accumulating near the foundation. In addition, a lack of cleanouts can make future inspections and maintenance more difficult. A properly designed installation must account for both surface water management and access to the drainage system.

How Much Does French Drain Installation Cost in Canada in 2026?

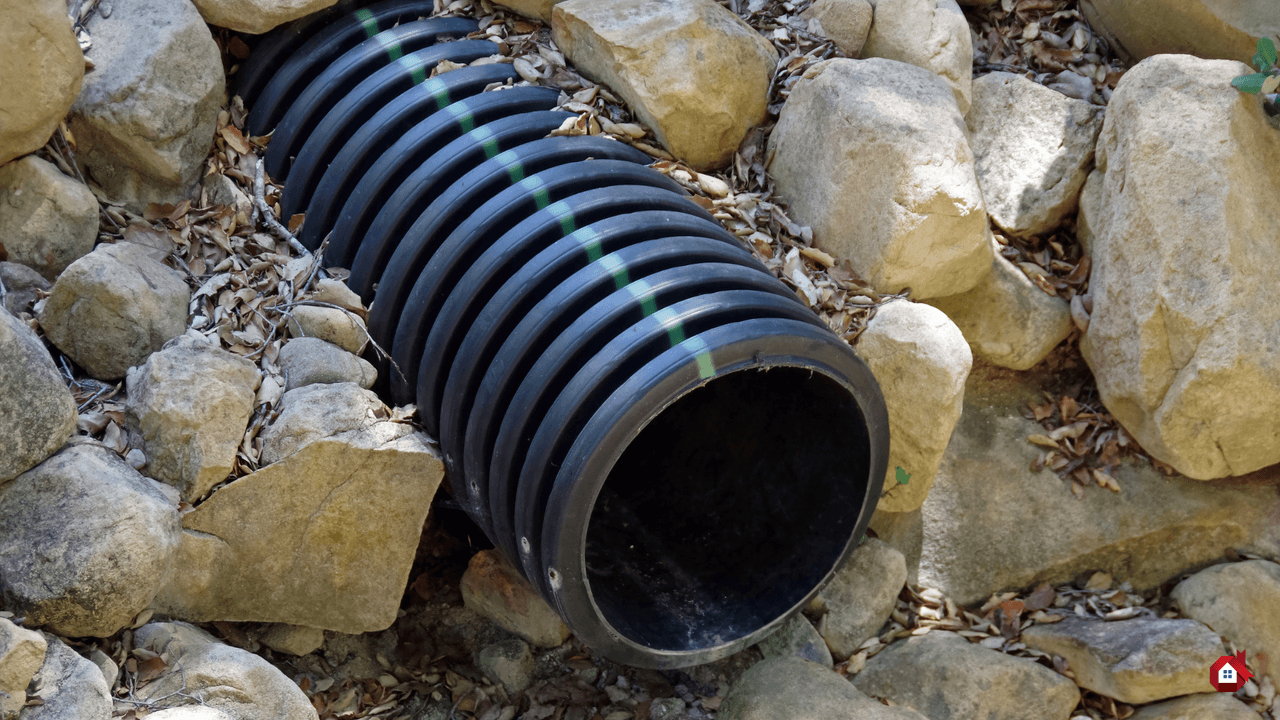

Source: Exaltech

The cost of installing a French drain depends on the foundation perimeter, excavation depth, site accessibility, and any additional work required.

Here are indicative prices for 2026.

These amounts are for reference and may vary depending on site conditions, location, and the work included in the quote.

French Drain Installation Costs in Major Canadian Cities

Costs can also vary between Canadian cities due to labour rates, soil conditions, excavation requirements, and local market conditions.

The above-mentioned price ranges are for reference purposes, representing a typical residential foundation drainage project, not verified city-specific contractor averages. Actual quotes may fall outside these ranges.

Several factors can affect the final cost:

• The size and perimeter of the house

• The depth of the foundation

• Soil conditions and the presence of bedrock

• Equipment access restrictions

• Decks, balconies, stairs, or garages near the excavation area

• Necessary foundation crack repairs

• Installation of waterproofing fabrics

• Backfilling and landscaping restoration

It's important to verify what's included in each quote. Some contractors provide pricing for drainage work only, while others include excavation, waterproofing, and landscaping restoration.

For a more detailed breakdown of costs in Quebec, consult our guide to French drain installation and foundation waterproofing prices in Canada in 2026.

How to Maintain, Repair, or Replace a French Drain

Source: RenoQuotes

A properly designed and installed French drain can last for several decades. However, its lifespan depends on material quality, soil conditions, and maintenance requirements.

How to Tell if a French Drain Is Working Properly?

An inspection may be necessary when water infiltration persists despite the presence of a drain or when the system shows signs of failure. For example, sediment buildup, iron ochre deposits, or unusually slow drainage may indicate a problem.

When the drain is accessible, a camera inspection can help identify certain blockages, crushed pipe sections, or faulty connections.

How to Clean a French Drain

Cleaning can be performed using specialized equipment, including hydrojetting, when the pipe's condition and type allow it. However, excessive pressure or unsuitable tools should be avoided, as they could damage the pipes. Maintenance frequency depends on the property's conditions and the drainage system's condition. Annual cleaning isn't necessary for every installation.

To learn more about the methods and costs, consult our article on high-pressure French drain cleaning in Quebec.

When to Replace a French Drain?

Replacement may become necessary when the system has significant damage, persistent blockages, or deterioration that prevents it from functioning properly. In some cases, a localized repair or replacing a single section may be sufficient. When several sections are damaged, a complete replacement may be preferable.

Before starting work, it's recommended to have the system inspected to avoid unnecessary replacement.

Why Should You Hire a Professional to Install Your French Drain?

Installing a French drain is a significant investment in protecting your home. Improper excavation, inadequate drainage, or faulty connections can lead to water infiltration and costly repairs.

A specialized contractor can assess the property's conditions, recommend suitable materials, and ensure the work meets applicable requirements.

Before choosing a professional, take the time to compare several detailed quotes and verify their qualifications and licensing with the appropriate provincial authority. In Quebec, you can check their licence with the Régie du bâtiment du Québec (RBQ).

FAQ About French Drain Installation

Can you install a French drain yourself?

Some surface drainage projects can be completed by an experienced homeowner. However, installing a drain around a foundation requires deep excavation and knowledge of drainage, waterproofing, and safety practices. It's therefore strongly recommended to hire a qualified contractor, particularly when the work involves exposing the house's foundation.

Can a French drain be installed too deep?

Yes. An unsuitable installation depth can prevent the system from collecting water effectively or compromise soil stability near the foundation. The depth must be determined according to the type of drainage required and the building's configuration. For an exterior foundation drain, installation generally takes place near the footing without compromising its support.

When is a French drain installation not recommended?

A French drain may be insufficient when there is no suitable drainage outlet, the groundwater table is particularly high, or the moisture problem originates from another source. A professional assessment can determine whether a French drain, sump pump, waterproofing work, or another solution is needed.

Is an interior French drain effective?

An interior French drain can be an option when exterior excavation is difficult or impossible. Installed beneath the concrete slab or near the basement's interior perimeter, it collects water that reaches the inside of the foundation and generally directs it toward a sump pit. Unlike an exterior French drain, it does not directly reduce water accumulation against the outside of the foundation walls.
